Game-Changer for Attic Storage Access
"Accessing your attic storage is both incredibly easy and safe."
Description:
Versalift 24 Garage Attic Storage Lift Specifications
- 15.3 cubic foot lift platform capacity
- 200 lb. lifting capacity
- 22.5" x 46.5" framed opening (requires 48" headroom height x 56.5" length)
- 20.75" x 44 lifting platform size
- Model 24 is available in 3' or 4' heights
Power and Capacity:
Versalift 24 Garage Attic Storage Lift is great way to get things into your attic with the least amount of effort and at an affordable price. It is difficult to find storage space these days and it is expensive and very tenacious to do so. The Model 24 is 15.5 cu. ft. and can go up to 20' floor to floor. You can put things on the lift such as holiday decorations as well keepsakes. The Model 24 will lift 200 lbs. and the Model 32 will accommodate 250 lbs.
Convenience:
Versalift 24 Garage Attic Storage Lift is more convenient that building a storage shed in the back yard and many home owner associations won't let you do that. And rental storage units are costly and can attract unwanted pests like roaches, ants, and bed bugs.
Features:
Versa Lift™ exclusive features include:
- Auto-Stop - The lifting platform stops automatically when it reaches the full-up or full-down position which makes operation very easy.
- When the lift goes up, the ceiling panel automatically closes sealing it off. It also shuts off automatically when it arrives level with the attic.
- Theres no better way to store things into your attic.
Which Size to Order
Make sure you measure from ATTIC FLOOR UPSTAIRS down to GARAGE FLOOR for correct unit height.
NOT FLOOR TO CEILING.
We can go up to 20’ in increments: 8-11’, 11-14’, 14-17’, 17-20’
Need some help?
Call us at 405-516-2412, M-F 9-5 CST.
Complete the look:
As Seen In
Why Choose the Versa Lift Model 24?
| Specification | Details |
|---|---|
| Lifting Cap: | 15.3 Cu. Ft., 200 lbs./Load |
| Platform ID: | 20.75" W x 44" L x 39" H Max |
| Power Head OD: | 6" W x 57" L x 46.5" H |
| Opening Req: | 22.5" x 46.5” |
| Corded: | Hand-held remote with keylock & 15' cord |
| Wireless: | Wireless hand-held radio remote |
| Wall Mounted: | 2 Wall Mounted Switches (24V) |
| Height Range: | Std=8-11’, H=11-14’, HX=14-17’, HXX=17-20’ |
| Joist Height Max: | 20” (incl. decking & sheet rock) |
| Lifting Capacity: | 15.3 Cu. Ft., 200 lbs. per load |
| Platform Dimensions (ID): | 20¾" W x 44" L x 39" H Max |
| Power-head Dimensions (OD): | 26" W x 57" L x 46¼" H |
| Lift Speed: | 8”/sec. (10-ft. in approx. 15 secs) |
| Cables (2): | .093 steel w/zinc plating 1,000 lb. breaking strength |
| Construction: | Powder coated steel |
| Motor: | .6 HP Gear motor with auto. brake |
| Voltage/Power: | 115 vac, 60 hz, 4.5 amps |
| Opening Required: | 22½ x 46½” (+¼”, -0”) |
| Opening Finish: | Smooth perpendicular sidewalls |
| Motorized Lift System: | Easily transport items between the attic and living space with a push-button, eliminating the need for ladders. |
|---|---|
| Lifting Height: | Reach up to 20 feet, ideal for various ceiling heights. |
| Heavy-Duty Construction: | A durable steel frame with a rust-resistant finish ensures long-lasting use. |
| Simple Installation: | Easy to install with clear instructions for DIY or professional setups. |
| Convenient & Safe Lifting: | Safely move heavy items without physical strain or injury risks. |
| Maximized Storage Space: | Store seasonal items and gear efficiently, freeing up living areas. |
| Clutter-Free Organization: | Keeps garages and basements tidy with items stored safely in the attic. |
| Reliable Performance: | Built to deliver consistent, dependable use for years to come. |
FAQs
The lift mounts on top of the Attic Floor Decking.... so simply measure from the attic floor upstairs to the garage floor downstairs. DO NOT measure floor to ceiling. Once you have your measurement, select the increment that matches your floor to floor distance. We can go up to 20’ in increments: 8-11’, 11-14’, 14-17’, 17-20’.
There are 4 springs up inside the lift that connect to the ceiling cover which is made of Powder Coated Steel. When the lift goes up through the framed out opening, the springs hold the ceiling cover door tight against the ceiling and the lift continues to travel until it gets flush with the floor of the attic at which time it automatically shuts itself off. You can also add insulation tape or sheets to the door ceiling cover to insulate it in the winter if desired.
MODEL 24 = 22.5" x 46.5" Allow minimum 4' Headroom in attic x 58.5" (motor head extends out 12" past framed opening) It can be on either end...
MODEL 32 = 30.5" x 58.5" Allow minimum 5' Headroom in attic x 70" (motor head extends out 12" past framed opening) It can be on either end...
Note: Model 24 is available with 36" Legs at no additional fee with initial order. Either unit can be modified (cut down only) for additional fee $450.

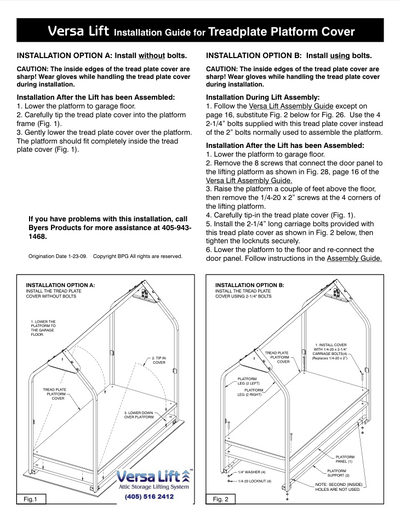

📂 Versalift 24- Manuals & Resources

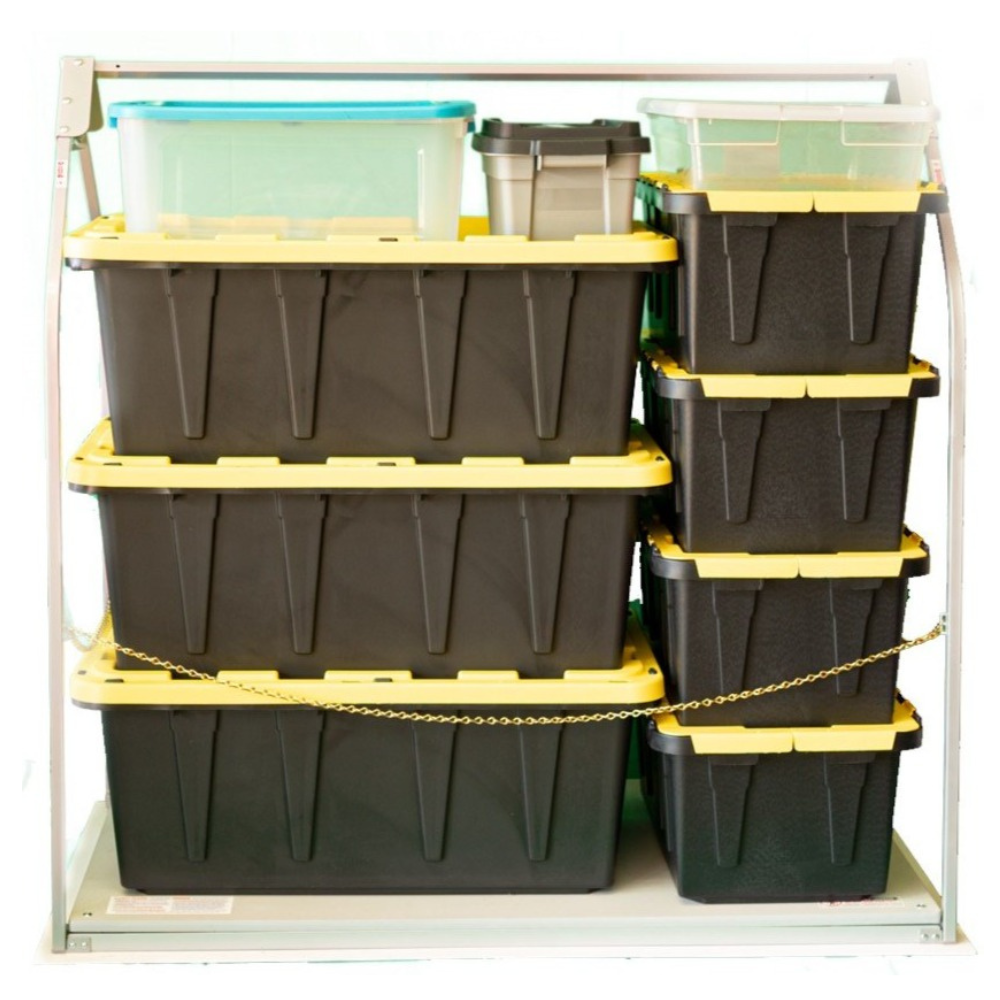

Need a larger lift?
The Versalift Model 32 can hold up 35 cu. ft. with a weight capacity of 250lbs! Move your belongings into the attic faster with the Model 32!
