Versalift Model 32
Evaluate Your Attic First Before You Cut Anything
The biggest installation mistakes usually happen before the lift ever goes in. A VersaLift Model 32 is not difficult to understand, but it does require a properly evaluated attic space and a precisely framed opening. If the opening is too small, out of square, rough on the inside, or framed in the wrong location, the platform can bind, rub, or fail to travel correctly.
In many homes, the easiest installation is near the pull-down attic ladder because it keeps the lift convenient while leaving the rest of the attic open for storage. In other homes, a better placement may be at the opposite end of the ladder opening so you are not stepping into the path of the lift when entering the attic.
Identify Your Joist Type
Start by determining whether the attic uses traditional solid lumber joists or engineered I-joists.
Solid Lumber Joists
- Traditional framing lumber such as 2x6, 2x8, 2x10, 2x12
- Usually easier to modify
- Better for simple blocking and header work

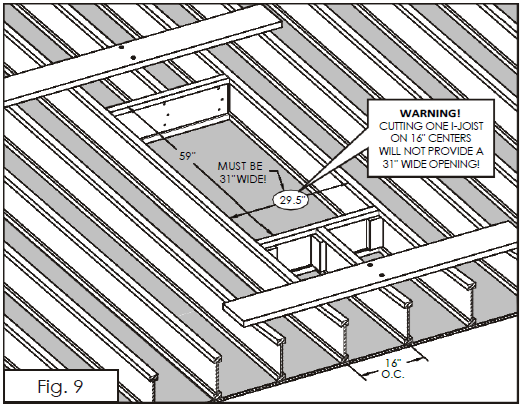

- More restrictive and less forgiving
- Require more precise framing details

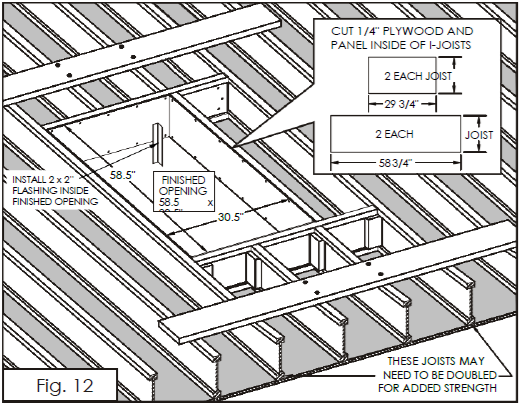

- Usually need skinning or paneling for a smooth opening
If you have 2 x 4 joists, these are most likely pre-engineered joists which should never be cut without consulting a structural engineer or very experienced framer. Many homes in hurricane areas use these due to building codes. A Model 24 VersaLift will usually fit in between these. If the roof trusses are sitting on these joists, you may need a Truss Leg Kit available from us.
Measure Joist Spacing

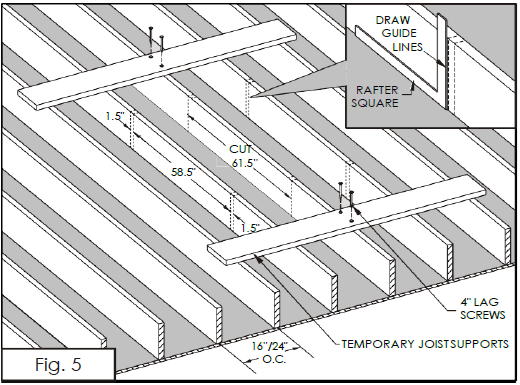

- 24" on center: For Model 24 it will fit in between the two joists, for Model 32, you will need to cut the one joist and move it over 8" to accommodate the 30.5" inside clearance then install your header and footer to 58.5" clearance.

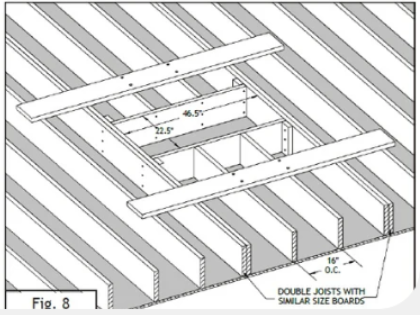

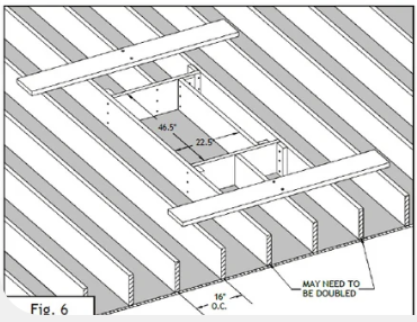

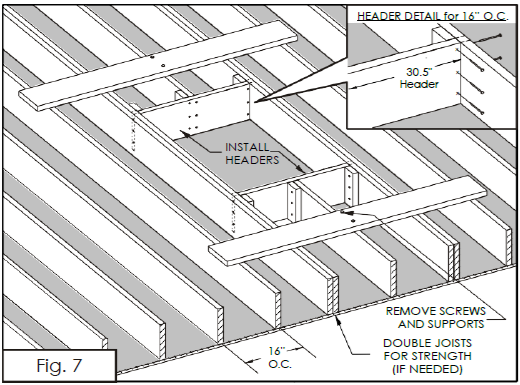

- 16" on center: cut the center joist out which gives you 30.5" inside dimensions width, install header & footer
- 12" on center: will require more framing work and planning

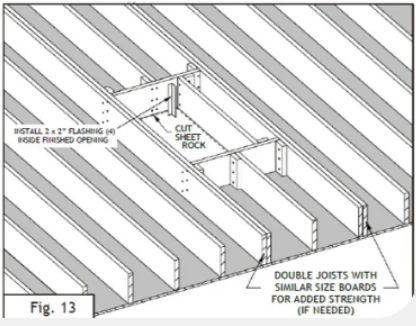

If you are ever in doubt, sistering joists or reinforcing adjacent framing members may be part of the solution. For more information on this subject visit our page How to Floor an Attic for Storage (Complete Step-by-Step Guide
Common Sense Observance: Often people are concerned about cutting a joist (as you should be) but if you have a pull down attic ladder...you will notice it normally has a 25-30.5" width and rarely have I seen a builder "beef up" adjoining joists, yet most ladders are rated for 375 lbs.
Check Joist Height
Make sure your framing depth and finished build-up do not create clearance issues. The lift door, platform travel, and opening finish all depend on staying within the system’s allowable framing conditions.
Confirm final framing depth, sheetrock, and decking details against the official VersaLift installation manual for the exact model being installed. Not sure which model is right? Compare with the VersaLift Model 24 attic lift
Verify Vertical Clearance Above the Opening

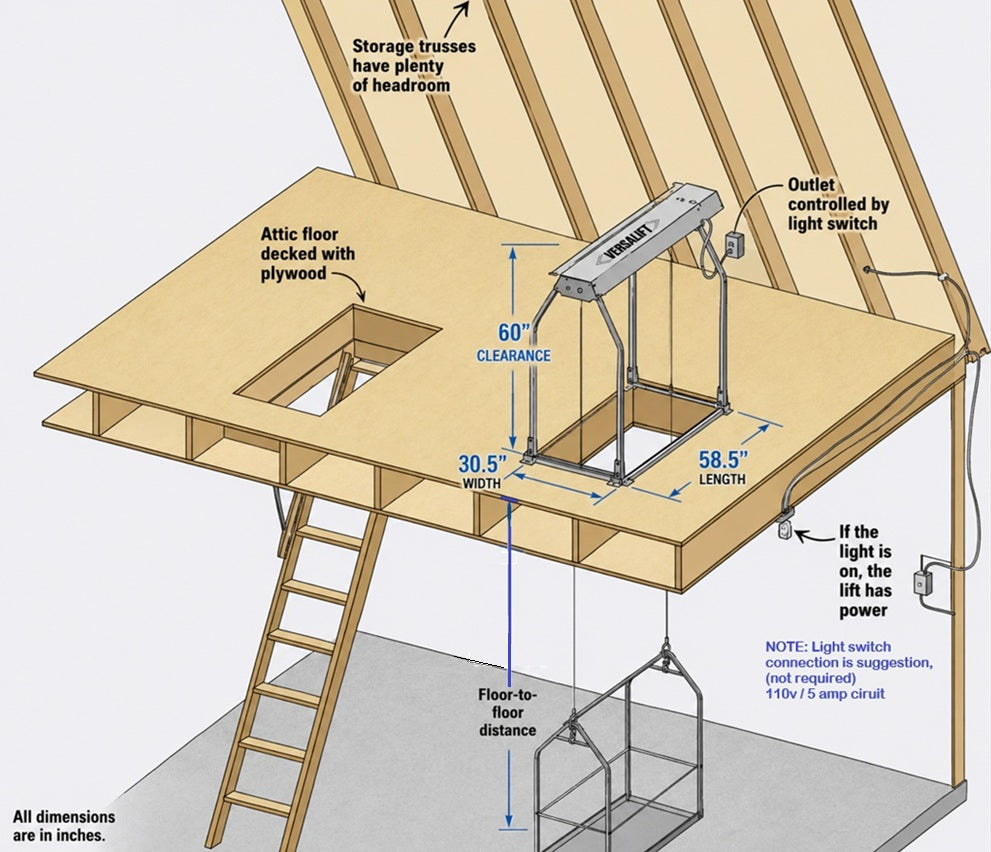

A VersaLift Model 32 needs roughly 60" inches of vertical clearance in the attic above the opening. You also need to think about where the motor projects 12" past the framed opening and whether roof slope, bracing, or framing members interfere with the power head. Learn more about attic lift systems and how they work
- Check for roof rafters, web braces, HVAC ducts, wiring, and lights
- Measure above the entire opening, not just one spot
- Remember that the motor can sometimes be oriented to the opposite end if layout requires it
Check Flooring and Access
- Install attic flooring where you will stand and store items
- Make sure you have safe access to the lift location
- Consider a safety rail around the attic ladder opening
Confirm Electrical Access
- Use a properly grounded outlet
- Plan for cord routing so nothing hangs into the opening
- Think ahead about shutoff convenience and lightning or surge concerns
Confirm Floor-to-Floor Height
Model 32 units are intended for a particular range of floor-to-floor heights. Be sure you are measuring from the attic floor down to the floor below, not just from floor to ceiling.
Note: C = Corded M = Mounted Wall Switches (2) 1 up / 1 downstairs W = Wireless
| Model | Typical Floor-to-Floor Range |
|---|---|
| Model 32C | 8 to 11 feet |
| Model 32CH | 11 to 14 feet |
| Model 32CHX | 14 to 17 feet |
| Model 32CHXX | 17 to 20 feet |
Choose the Right Location for the Lift
Location matters just as much as framing. You want the lift where it will be convenient, but not where it creates conflict with attic access, roof structure, garage door tracks, lighting, or headroom.
What You Want in a Good Lift Location
- Convenient access from the attic ladder or attic stairs
- Clear room above and below the opening
- Enough space for framing and motor position
- A structurally sensible area with minimal joist cutting
What to Avoid
- Installing across joists when an aligned layout is available
- Interference from trusses, braces, or steep roof slopes
- Garage door tracks, openers, shelving, or wall obstructions below
- A spot where entering the attic forces you into the lift’s path
All of these graphics and more can be found in the MODEL 32 Installation Manual
Exact Opening Size and Tolerances
This is where many installations succeed or fail. A VersaLift opening is not “close enough” carpentry. It needs to be the correct size, square, and cleanly finished.
| Requirement | Model 32 |
|---|---|
| Final Opening Size | 30.5" x 58.5" x 60" Head Room |
| Tolerance | Up to 1/4" larger, but not smaller |
| Opening Shape | Must be square |
| Sidewalls | Must be smooth, perpendicular, and flush |
Opening Finish Requirements
- No nail heads sticking into the opening
- No hanger brackets protruding into the opening
- No drywall edges or decking lips catching the platform
- No rough spots where the platform frame can bind
Critical: if the inside of the opening is rough or out of square, the lift can hang up during travel. Most avoidable lift problems start with a bad opening.
Need Help Planning a VersaLift Installation?
If you are not sure whether your attic will work for a VersaLift Model 24, send us your ceiling height, attic photos, joist spacing, and a few measurements. We can usually help you spot the big issues before you start cutting, or are happy to facetime with you for a walk-through.
