VersaLift Model 24 Installation Planning Guide
DOWNLOAD THE MODEL 24 INSTALLATION MANUAL HERE
Add your paragraph text here.
Opening Size
Final opening for a Model 24 should be22 1/2" x 46 1/2", with the opening square and sidewalls smooth.
Vertical Clearance
Model 24 requires about47" minimum attic clearancedirectly above the opening, plus planning around motor location.
Best Orientation
Whenever possible, install the liftaligned with the joiststo reduce cutting and preserve structural strength.
On This Page
- Evaluate the Attic First
- Choose the Right Location
- Opening Size & Tolerances

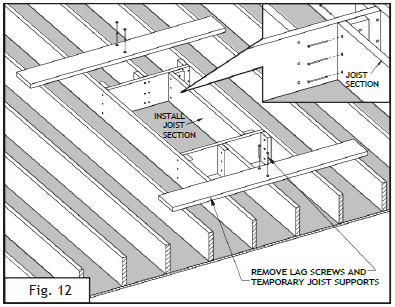

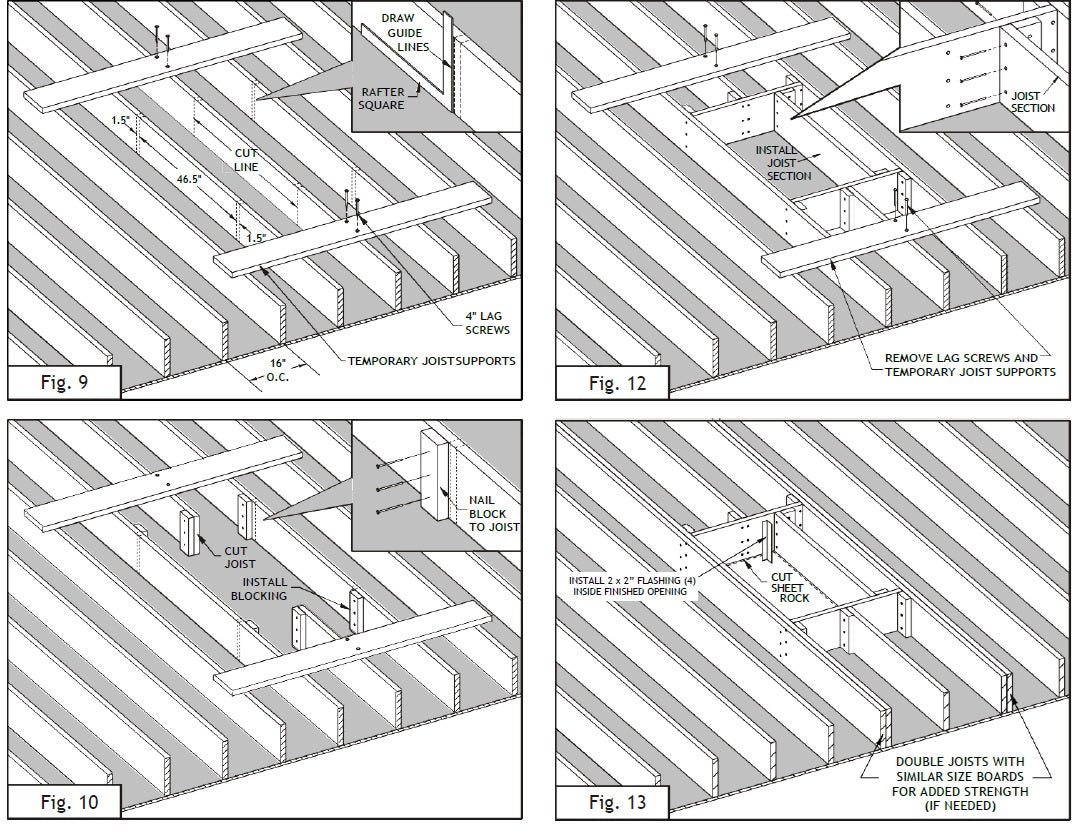

- Framing with Solid Wood Joists
- Framing with I-Joists
- Pilot Holes & Mounting Prep
- Safety Considerations
- Common Installation Mistakes
- When to Hire a Professional
- Frequently Asked Questions
Evaluate Your Attic First Before You Cut Anything
The biggest installation mistakes usually happen before the lift ever goes in. A VersaLift Model 24 is not difficult to understand, but it does require a properly evaluated attic space and a precisely framed opening. If the opening is too small, out of square, rough on the inside, or framed in the wrong location, the platform can bind, rub, or fail to travel correctly.
In many homes, the easiest installation is near the pull-down attic ladder because it keeps the lift convenient while leaving the rest of the attic open for storage. In other homes, a better placement may be at the opposite end of the ladder opening so you are not stepping into the path of the lift when entering the attic.
Identify Your Joist Type
Start by determining whether the attic uses traditional solid lumber joists or engineered I-joists.
Solid Lumber Joists
- Traditional framing lumber such as 2x6, 2x8, or 2x10
- Usually easier to modify
- Better for simple blocking and header work
- More restrictive and less forgiving
- Require more precise framing details
- Usually need skinning or paneling for a smooth opening

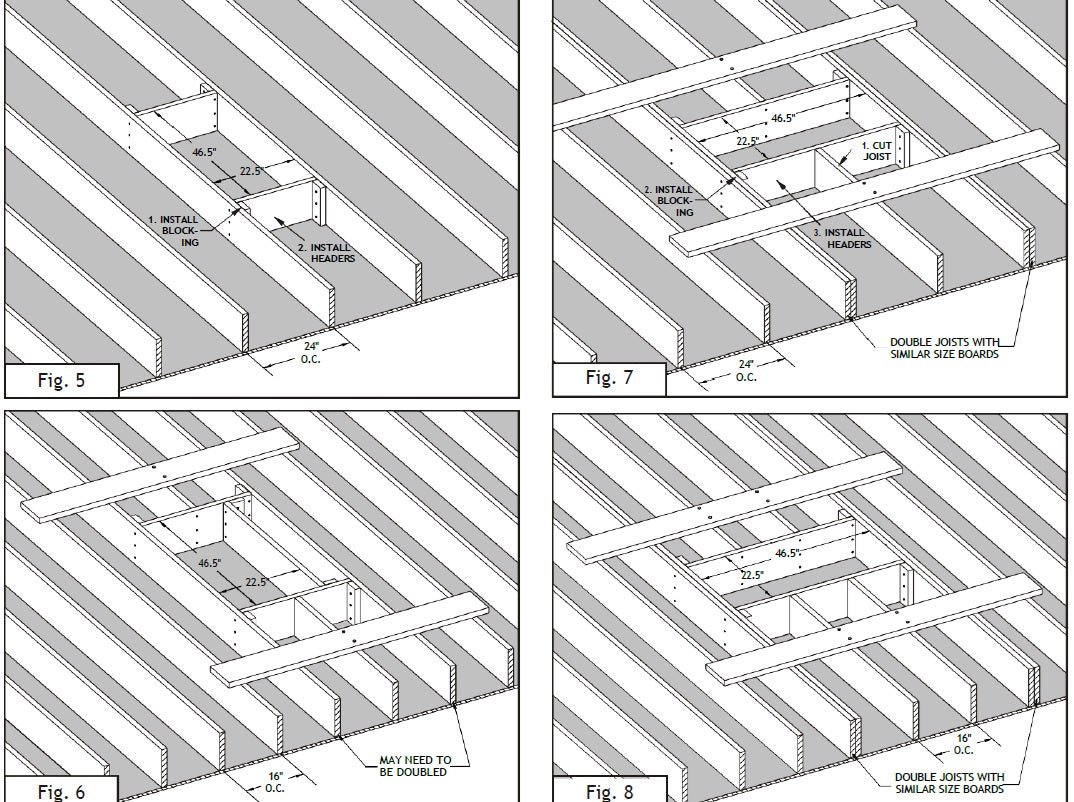

Measure Joist Spacing
- 24" on center: often the easiest for a Model 24 because the lift may fit between joists with minimal structural modification
- 16" on center: usually requires joist cutting, reframing, or shifting members to create the proper opening
- 12" on center: will require more framing work and planning
If you are ever in doubt, sistering joists or reinforcing adjacent framing members may be part of the solution. For more information on this subject visit our page How to Floor an Attic for Storage (Complete Step-by-Step Guide
Check Joist Height
Make sure your framing depth and finished build-up do not create clearance issues. The lift door, platform travel, and opening finish all depend on staying within the system’s allowable framing conditions.
Confirm final framing depth, sheetrock, and decking details against the official VersaLift installation manual for the exact model being installed. Not sure which model is right? Compare with the VersaLift Model 32 attic lift

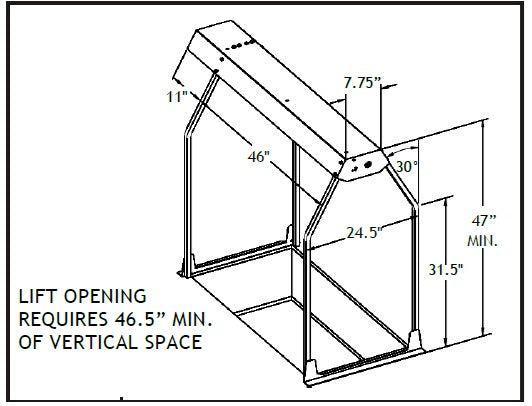

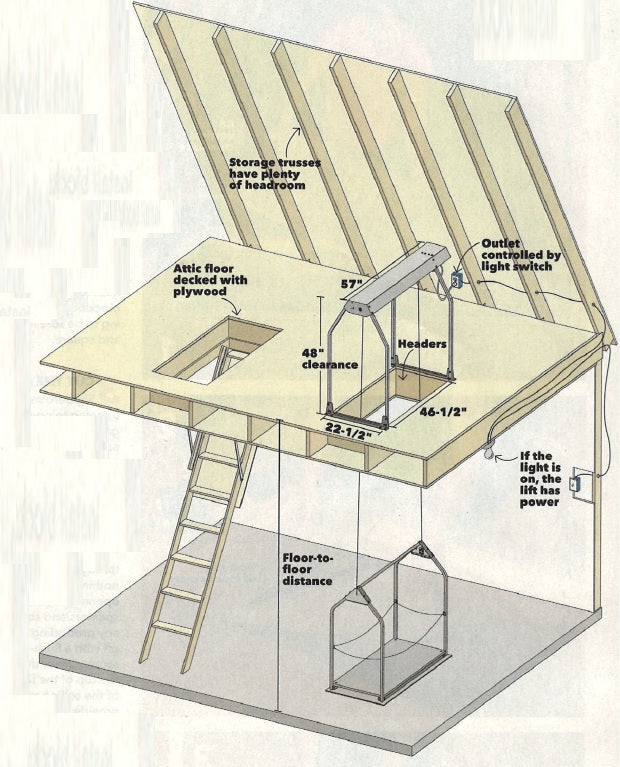

Verify Vertical Clearance Above the Opening
A VersaLift Model 24 needs roughly 47 inches of vertical clearance in the attic above the opening. You also need to think about where the motor projects past the framed opening and whether roof slope, bracing, or framing members interfere with the power head. Learn more about attic lift systems and how they work
- Check for roof rafters, web braces, HVAC ducts, wiring, and lights
- Measure above the entire opening, not just one spot
- Remember that the motor can sometimes be oriented to the opposite end if layout requires it
Check Flooring and Access
- Install attic flooring where you will stand and store items
- Make sure you have safe access to the lift location
- Consider a safety rail around the attic ladder opening
Confirm Electrical Access
- Use a properly grounded outlet
- Plan for cord routing so nothing hangs into the opening
- Think ahead about shutoff convenience and lightning or surge concerns
Confirm Floor-to-Floor Height
Model 24 units are intended for a particular range of floor-to-floor heights. Be sure you are measuring from the attic floor down to the floor below, not just from floor to ceiling.
Note: C = Corded M = Mounted Wall Switches (2) 1 up / 1 downstairs W = Wireless
| Model | Typical Floor-to-Floor Range |
|---|---|
| Model 24 C | 8 to 11 feet |
| Model 24CH | 11 to 14 feet |
| Model 24CHX | 14 to 17 feet |
| Model 24CHXX | 17 to 20 feet |

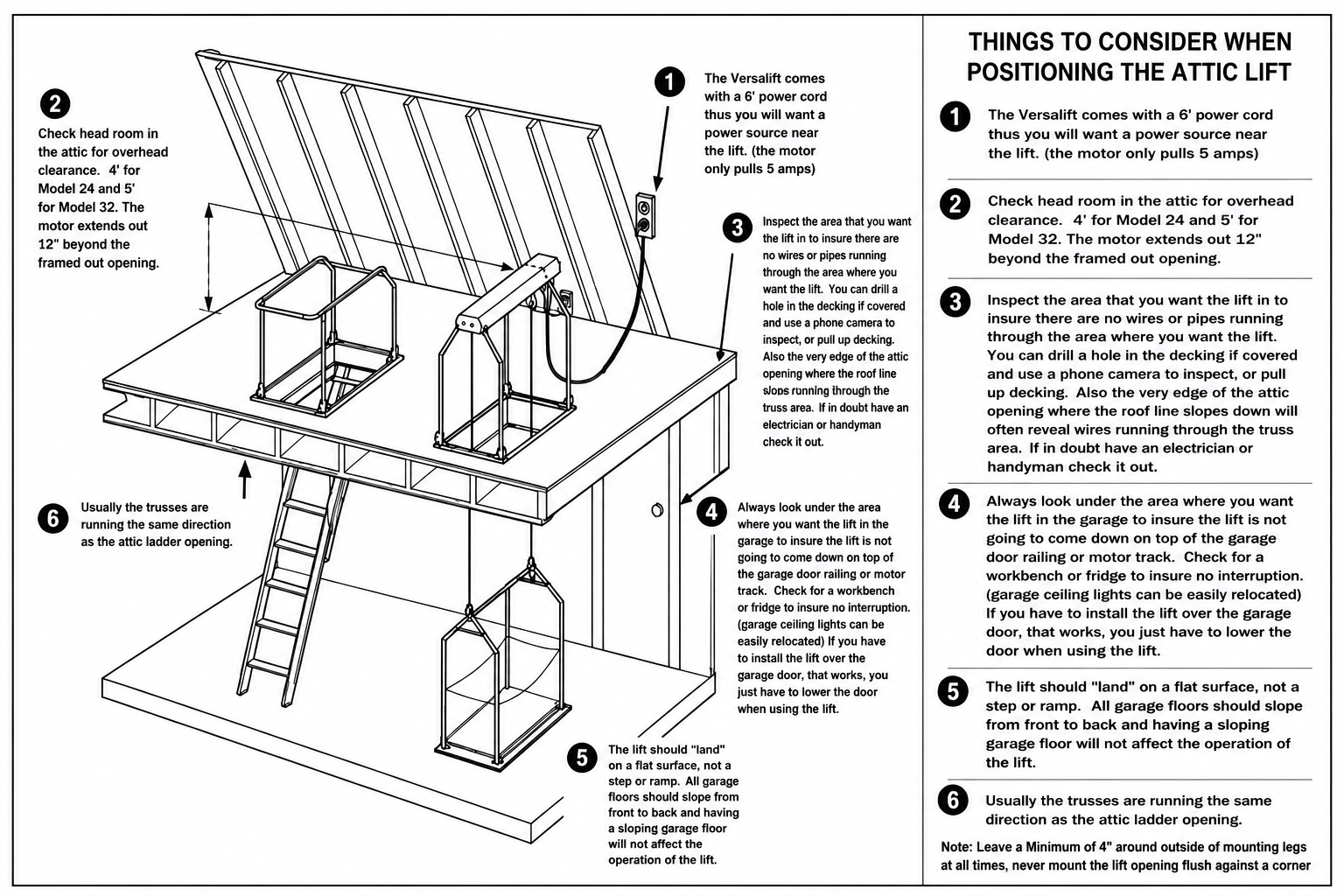

Choose the Right Location for the Lift
Location matters just as much as framing. You want the lift where it will be convenient, but not where it creates conflict with attic access, roof structure, garage door tracks, lighting, or headroom.
What You Want in a Good Lift Location
- Convenient access from the attic ladder or attic stairs
- Clear room above and below the opening
- Enough space for framing and motor position
- A structurally sensible area with minimal joist cutting
What to Avoid
- Installing across joists when an aligned layout is available
- Interference from trusses, braces, or steep roof slopes
- Garage door tracks, openers, shelving, or wall obstructions below
- A spot where entering the attic forces you into the lift’s path

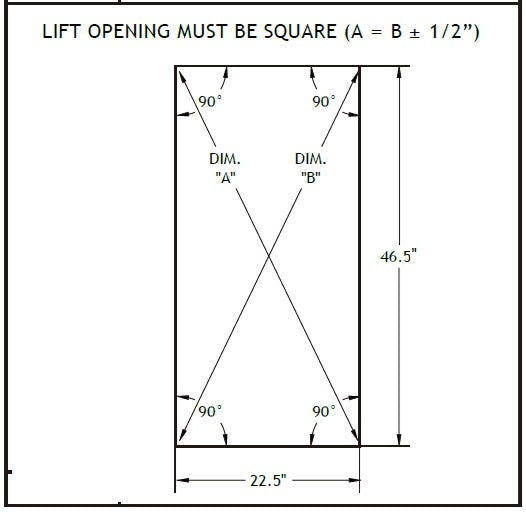

Exact Opening Size and Tolerances
This is where many installations succeed or fail. A VersaLift opening is not “close enough” carpentry. It needs to be the correct size, square, and cleanly finished.
| Requirement | Model 24 |
|---|---|
| Final Opening Size | 22 1/2" x 46 1/2" |
| Tolerance | Up to 1/4" larger, but not smaller |
| Opening Shape | Must be square |
| Sidewalls | Must be smooth, perpendicular, and flush |
Opening Finish Requirements
- No nail heads sticking into the opening
- No hanger brackets protruding into the opening
- No drywall edges or decking lips catching the platform
- No rough spots where the platform frame can bind
Critical: if the inside of the opening is rough or out of square, the lift can hang up during travel. Most avoidable lift problems start with a bad opening.
Pilot Holes and Mounting Prep
Once the opening is framed and finished correctly, the next stage is laying out the mounting rails and drilling pilot holes. This is not difficult, but it does need to be measured carefully so the power head sits where it should and has room for later adjustment.
- Mark the center of the opening
- Lay out the mounting rail hole locations carefully
- Drill pilot holes to the correct size and depth
- Keep the initial rail fasteners loose enough for final adjustment
Proper layout at this stage makes centering and fine-tuning much easier once the lift begins moving.
Safety Considerations During Prep and Installation
Attic work can be dangerous. Heat, poor footing, exposed nails, low lighting, and open ceiling holes all create real risks. Slow down and think your way through the project before you start.
- Do not work alone in a hot attic
- Only stand on decked areas or structural framing
- Use proper eye and hearing protection
- Keep tools and cords clear of the opening
- Use safe temporary supports if cutting framing members
- Install attic safety railing where appropriate
Common Installation Mistakes to Avoid
When to Hire a Professional
Some VersaLift installations are straightforward. Others are not. A handyman or skilled DIYer may be fine on a simple 24-inch on-center solid-joist installation, but there are plenty of situations where professional framing help is the smart move.
- You have never framed a ceiling opening before
- You are dealing with engineered joists
- You are unsure what can safely be cut
- You need to reinforce or sister multiple framing members
- You are working in a cramped or unusually shaped attic
Frequently Asked Questions About Preparing for a VersaLift Model 24
Often yes, and that is a very common location. It keeps the lift convenient and leaves more attic area open for storage. The real answer depends on joist layout, headroom, roof
No. In a favorable 24-inch on-center setup, you may be able to frame the opening with little or no joist cutting. In 16-inch framing, joist cutting and reframing are much more likely.
Very smooth. Nail heads, hanger brackets, rough drywall, and framing ledges can interfere with the lift. The opening must be square, clean, and free of protrusions.
You may need to change lift location, reverse motor orientation, use a different lift configuration, or move up to a different planning solution. Tight roof lines should be evaluated before cutting anything. Below a pic of a "mock up" a customer built to insure the lift would fit his attic. These dimensions are available on the Versalift Model Spec Sheet.
Why Choose Versa Lift?
If you are considering a larger MODEL 32 the installation is pretty much the same, just keep in mind that the framing is 30.5" x 58.5" (the motor extends out 12" more on one end) and the head room clearance is 60". The Model 32 height can be modified. We send it out to a welder and they cut it down and re-weld where necessary and re-powder coat. Charge us $400.00 If you are in doubt, order the 24. It holds two tubs, handles 200 lbs. and you are only pushing a button. if you order the 32 and it won't fit, the shipping out and back may cost you $450 each way, so don't guess!! INSTALLATION MANUAL for MODEL 32.
Need Help Planning a VersaLift Installation?
If you are not sure whether your attic will work for a VersaLift Model 24, send us your ceiling height, attic photos, joist spacing, and a few measurements. We can usually help you spot the big issues before you start cutting, or are happy to facetime with you for a walk-through.
